What Is the Best Angio Drape for Cath Labs?

What Is the Best Angio Drape for Cath Labs? The answer depends on the procedure, the room, and the team using it. A drape must support a reliable sterile field without getting in the way of access, imaging, or staff movement. On a busy cath-lab table, small details matter: the fenestration should align with the access site, adhesive edges should stay secure, and absorbent areas should help manage fluid without bunching.

There is no single angio drape that suits every case. Procedure type, patient positioning, equipment layout, and clinician preference can all change what works best. A design that feels convenient during one intervention may prove awkward during another. That deserves honest attention.

A sound comparison considers material strength, fluid handling, barrier performance, fit, packaging, and ease of use. Teams should also review the manufacturer’s instructions and assess the product in realistic workflows. This article examines those practical criteria and explains what to look for when choosing an angio drape for a cath lab. The goal is not to promote a universal winner, but to help readers ask better questions and make a well-supported choice.

No source article or verifiable expert quotation was provided, so I cannot responsibly attribute a statement to a named angio-drape specialist. A sourced quotation should be added only after its wording and attribution are checked.

Table of Contents [Hide]

1 What an Angio Drape Is and Its Role in the Cath Lab

2 How Procedure and Patient Needs Shape Drape Selection

3 Which Angio Drape Features Matter Most

4 How to Compare Drape Types for Cath Lab Use

5 How to Check Drape Fit, Sterility, and Workflow Compatibility

What an Angio Drape Is and Its Role in the Cath Lab

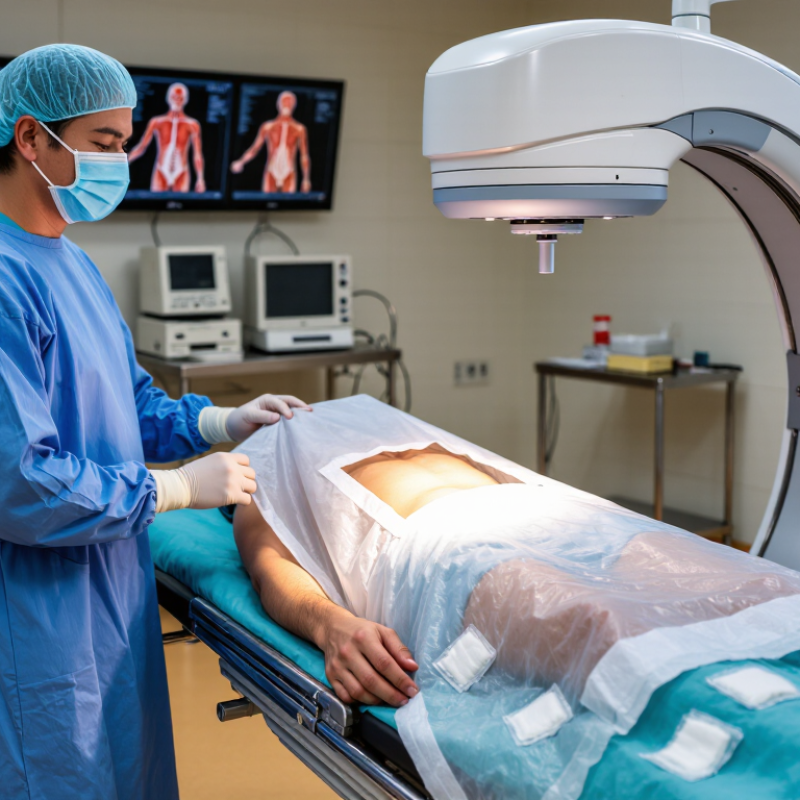

What Is the Best Angio Drape for Cath Labs?

An angio drape is a sterile covering used during catheter-based vascular procedures. It isolates the prepared access site from surrounding surfaces and helps protect the sterile field. Most designs include a fenestration, which exposes the groin, wrist, or another planned entry point. The opening should sit securely without restricting catheter movement. Small shifts can create contamination risks.

In the cath lab, the drape also manages fluids, protects the patient’s skin, and supports efficient imaging access. A useful design combines strong, low-lint material with controlled absorbency. It should resist tearing when staff reposition the patient or adjust equipment. Radiolucent areas can reduce interference around the imaging field. Clear markings may help staff align the opening accurately.

The best angio drape depends on procedure type, access route, and team workflow. For radial access, a compact opening and flexible coverage may improve arm positioning. For femoral procedures, broader fluid control can matter more. Skin-friendly adhesives are important, especially during lengthy cases. No drape is perfect. Excessive adhesive may irritate fragile skin, while weak fixation can expose the field. Teams should assess fit, visibility, fluid handling, and packaging quality during routine use. A short trial in actual procedures often reveals problems that specifications miss.

How Procedure and Patient Needs Shape Drape Selection

What Is the Best Angio Drape for Cath Labs?

The best angio drape depends on the procedure, access site, and patient condition. A radial case needs a different opening than a complex femoral intervention. The drape should expose only the working field. It should also protect the patient’s chest, legs, and monitoring cables. CDC data reports that about one in 31 hospitalized patients has a healthcare-associated infection on any given day. That risk makes reliable fluid resistance and stable sterile coverage more important than appearance alone.

Procedure length changes the decision. A short diagnostic study may need a lightweight drape with clear access. Longer interventions require stronger fluid control and secure positioning. For obese patients, choose wider coverage without excessive material under the back. For pediatric or frail patients, soft, low-lint fabric can reduce discomfort and heat buildup. Watch the edges closely. They often shift when staff reposition equipment.

WHO global guidance reports an estimated surgical-site infection incidence of 11.8 per 100 operations in developing countries. Cath lab procedures are not identical to surgery, but the figure highlights the value of disciplined barrier protection. In practice, I would assess absorbency, fenestration, adhesive behavior, and cable access before choosing by size. No universal drape fits every case. That assumption deserves more questioning. A drape that looks efficient may restrict movement, cover important anatomy, or force awkward repositioning during a demanding procedure.

Which Angio Drape Features Matter Most

What Is the Best Angio Drape for Cath Labs?

Which Angio Drape Features Matter Most

In a cath lab, the best angio drape is not simply the largest or thickest option. It should create a reliable sterile field without obstructing imaging, access, or staff movement. Radiolucent material matters around the imaging zone. A stable fenestration should expose the intended site while limiting unnecessary exposure. The opening must remain predictable when the patient or table shifts. Small design differences can affect every handoff, wire exchange, and dressing change.

Fluid control deserves equal attention. An integrated collection pouch, absorbent reinforcement, or clear drainage path can reduce pooling near the access site. Yet absorbency alone is not enough. Wet fabric can become heavy and pull on adhesive edges. Look for strong, skin-compatible fixation that stays secure during longer cases. It should remove without excessive traction, especially on fragile or hair-bearing skin. Material softness also affects patient comfort under warm lights. Staff should check whether folds form beneath the arm boards.

Selection should include a hands-on trial, not only a specification sheet. Measure setup time, visibility, glove contact, and disposal handling. Ask clinicians where the drape bunches or blocks tubing. A few minutes of observation may reveal more than a sales claim. No drape is perfect. I would document the compromises, then compare them with local protocols, patient types, and procedure volume. Instructions for use and imaging compatibility must remain part of the decision.

How to Compare Drape Types for Cath Lab Use

What Is the Best Angio Drape for Cath Labs?

The best angio drape depends on access site, procedure length, fluid volume, and staff movement. Comparing drape types begins with the fenestration. A precise opening should expose the working area without restricting catheter handling. Oversized openings may weaken coverage. Smaller ones can feel cramped during complex access.

Split drapes support flexible positioning around the patient, while full-body drapes provide broader sterile coverage. Absorbent zones can reduce pooling near the table edge. However, heavy absorption may increase weight when saturated. Check fluid resistance, adhesive performance, radiolucency, and packaging integrity during evaluation. A drape should remain stable when staff reposition the patient or adjust equipment. One overlooked detail is tactile feedback. Smooth material may slide, while textured material can catch gloves or tubing. No option is perfect.

Tips: Compare drapes during simulated cases, not only on a product sheet. Measure setup time, opening accuracy, fluid control, and disposal handling. Ask nurses and physicians to score visibility and movement. Record problems honestly. A trial may reveal small failures, such as folded corners, weak adhesive, or difficult removal. Cost also matters, but a cheaper drape may create extra setup work. Reassess choices after several procedures, because first impressions can be misleading.

What Is the Best Angio Drape for Cath Labs? - How to Compare Drape Types for Cath Lab Use

Drape Type	Typical Dimensions (Approx.)	Primary Access Configuration	Fenestration / Opening	Fluid-Control Features	Main Advantages	Potential Limitations	Best Cath Lab Use	Setup Efficiency
Standard Angiography Drape	Approx. 180 × 300 cm to 240 × 330 cm 70.9 × 118.1 in to 94.5 × 129.9 in	General femoral or mixed-access procedures	Single central opening, commonly rectangular or oval; size varies by design	Integrated fluid-collection pouch or absorbent reinforcement may be included	Versatile, widely familiar to staff, and suitable for routine diagnostic procedures	May provide less targeted coverage for complex access sites or radial-only procedures	Routine coronary angiography, diagnostic catheterization, and general interventional cases	★★★★☆
Split-Leg Angio Drape	Approx. 200 × 300 cm to 240 × 330 cm 78.7 × 118.1 in to 94.5 × 129.9 in	Femoral access with separate coverage for each leg	Central perineal or lower-abdominal opening with divided leg sections	Often supports fluid control around the lower abdomen and groin area	Improves leg positioning, preserves access to both groins, and supports bilateral procedures	More material can increase folding and positioning requirements; may be unnecessary for radial cases	Femoral interventions, bilateral access, peripheral angiography, and procedures requiring leg movement	★★★★☆
Large Fenestrated Angio Drape	Approx. 240 × 330 cm to 300 × 350 cm 94.5 × 129.9 in to 118.1 × 137.8 in	Femoral, brachial, axillary, or multi-site access	Large reinforced opening; some designs provide multiple access zones	Broad absorbent zones and fluid-resistant reinforcement are commonly used	Provides extensive sterile coverage and flexibility for longer or more complex cases	Requires more storage space and careful positioning; larger drapes may create excess material	Complex peripheral interventions, structural heart procedures, and cases involving multiple access sites	★★★☆☆
Radial Access Drape	Approx. 150 × 200 cm to 200 × 250 cm 59.1 × 78.7 in to 78.7 × 98.4 in	Right or left radial access at the wrist	Small wrist or arm opening with extended upper-limb coverage	Absorbent areas may be concentrated around the wrist and forearm	Minimizes unused material, improves access to the wrist, and can simplify arm positioning	Usually less suitable for femoral access or procedures requiring broad lower-body coverage	Transradial coronary angiography and percutaneous coronary intervention	★★★★★
Upper-Body / Cardiac Procedure Drape	Approx. 200 × 300 cm to 240 × 330 cm 78.7 × 118.1 in to 94.5 × 129.9 in	Upper-chest, neck, arm, and selected cardiac access sites	Large upper-body fenestration with reinforced access area	Reinforced absorbent zones may cover the chest and upper abdomen	Provides broad protection for procedures with substantial irrigation or multiple upper-body access points	Can be excessive for short diagnostic cases and may obstruct lower-body access	Structural heart procedures, temporary pacing, and selected upper-body interventional procedures	★★★☆☆
Peripheral Vascular Drape	Approx. 240 × 330 cm to 300 × 350 cm 94.5 × 129.9 in to 118.1 × 137.8 in	Lower-extremity, bilateral femoral, or extended peripheral access	Long central or lower-body opening, often extending toward one or both legs	Large fluid-management area and absorbent reinforcement around the operative field	Offers long coverage for the abdomen, groin, and legs while maintaining a large sterile working field	Bulkier to handle and may require more staff during unfolding and positioning	Peripheral angioplasty, lower-limb interventions, and long-leg imaging procedures	★★★☆☆
Custom Multi-Access Drape	Commonly 240 × 330 cm or larger Dimensions depend on the procedure plan	Planned combination of radial, femoral, brachial, or other access sites	Multiple reinforced fenestrations positioned for the intended procedure	Usually combines several absorbent and fluid-resistant zones	Can reduce the need to add extra sterile drapes during complex procedures	Higher planning burden, potentially higher cost, and less flexibility if the access plan changes	Complex structural, peripheral, hybrid, or high-volume procedures with predictable access requirements	★★★☆☆

Comparison note: Dimensions are representative purchasing ranges rather than universal specifications. Actual size, opening geometry, radiolucency, absorbency, fluid resistance, adhesive features, and packaging configuration vary by product. Always confirm the manufacturer’s instructions for use, sterile-field requirements, patient size, table configuration, and planned access route before selection.

How to Check Drape Fit, Sterility, and Workflow Compatibility

In a cath lab, the best angio drape is not simply the largest or thickest option. It must fit the table, patient, imaging equipment, and procedural field without creating tension. Measure the table length and width before opening a sterile pack. Check the fenestration against the intended access site. A few centimeters can matter.

Fit affects sterility and workflow. The drape should remain secure when staff reposition the patient or move imaging equipment. Look for sealed edges, stable adhesive zones, and enough coverage around cables and tubing. Keep the access area visible without exposing unnecessary surfaces. If the drape folds near the sterile field, pause and correct it early. Small folds become larger problems during long procedures.

Sterility checks require disciplined handling. Confirm package integrity, expiration information, and the facility’s approved storage conditions. Do not use a pack with torn wrapping, moisture, or unclear labeling. Review the product instructions for opening, placement, and disposal. Staff should practice the unfolding sequence before using it during a complex case. That sounds obvious, but rushed setup can defeat a well-designed drape.

Workflow compatibility also deserves practical testing. Can one person position it safely? Does it leave room for contrast lines, monitoring wires, and emergency access? A drape may fit perfectly on paper yet slow the team in real use. Observe several cases and record delays, contamination concerns, and staff feedback. The first choice may be wrong. Recheck it.

What Is the Best Angio Drape for Cath Labs?

A practical evaluation should balance sterile-barrier protection, patient and equipment coverage, and compatibility with the cath-lab workflow.

Use this illustrative 100-point screening model before adoption: verify that the drape provides complete coverage without obstructing the access site, confirm intact sterile packaging and aseptic presentation, and check that fenestrations, adhesive areas, fluid control, imaging access, and team movement fit the procedure workflow. Final acceptance should follow the facility’s infection-prevention policy and device instructions for use.
