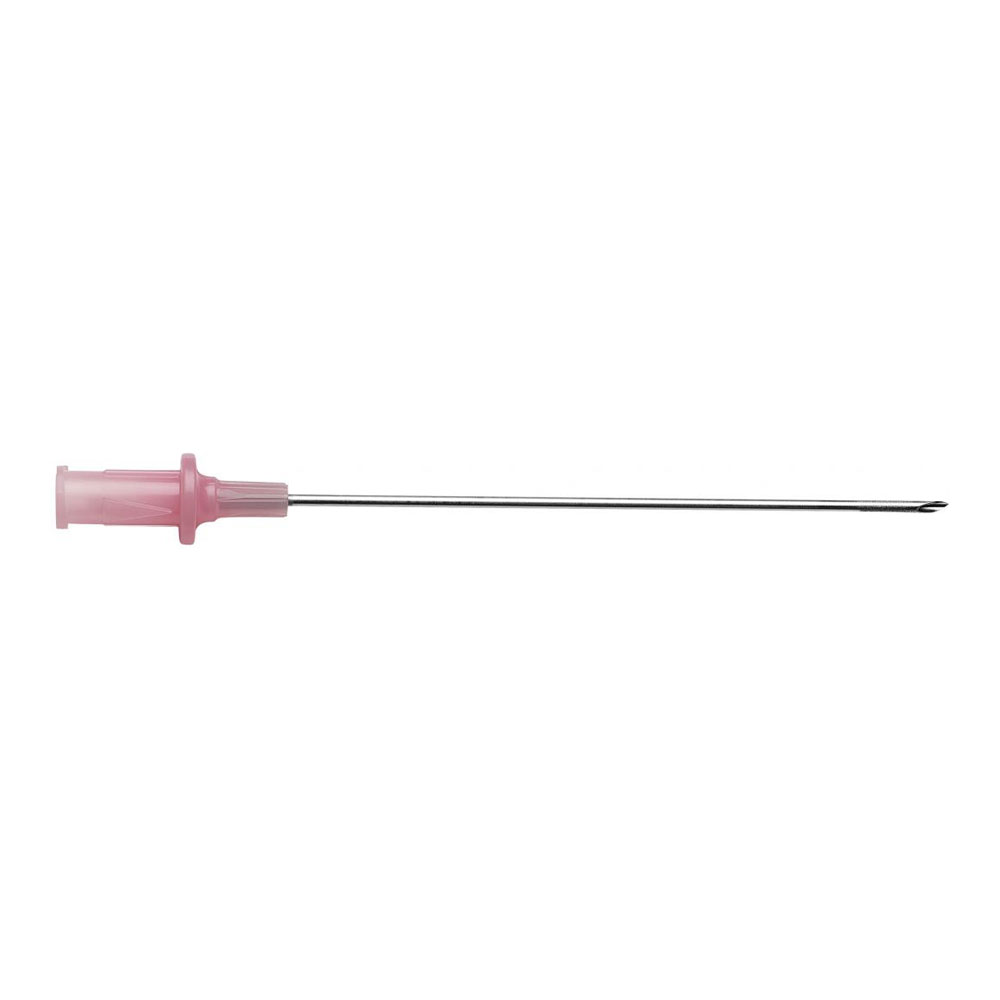

Standard Guidewire Introducer Needles
Standard Guidewire Introducer Needles are designed for dependable vascular access and smooth guidewire passage during interventional procedures. Integrated into Custom Procedure Sets (CPS), these needles provide clinicians with consistent performance while streamlining procedural setup.
- Needle points feature a non-coring “B” arterial bevel
- Funneled (tapered) luer hub allows for trouble-free guidewire insertion

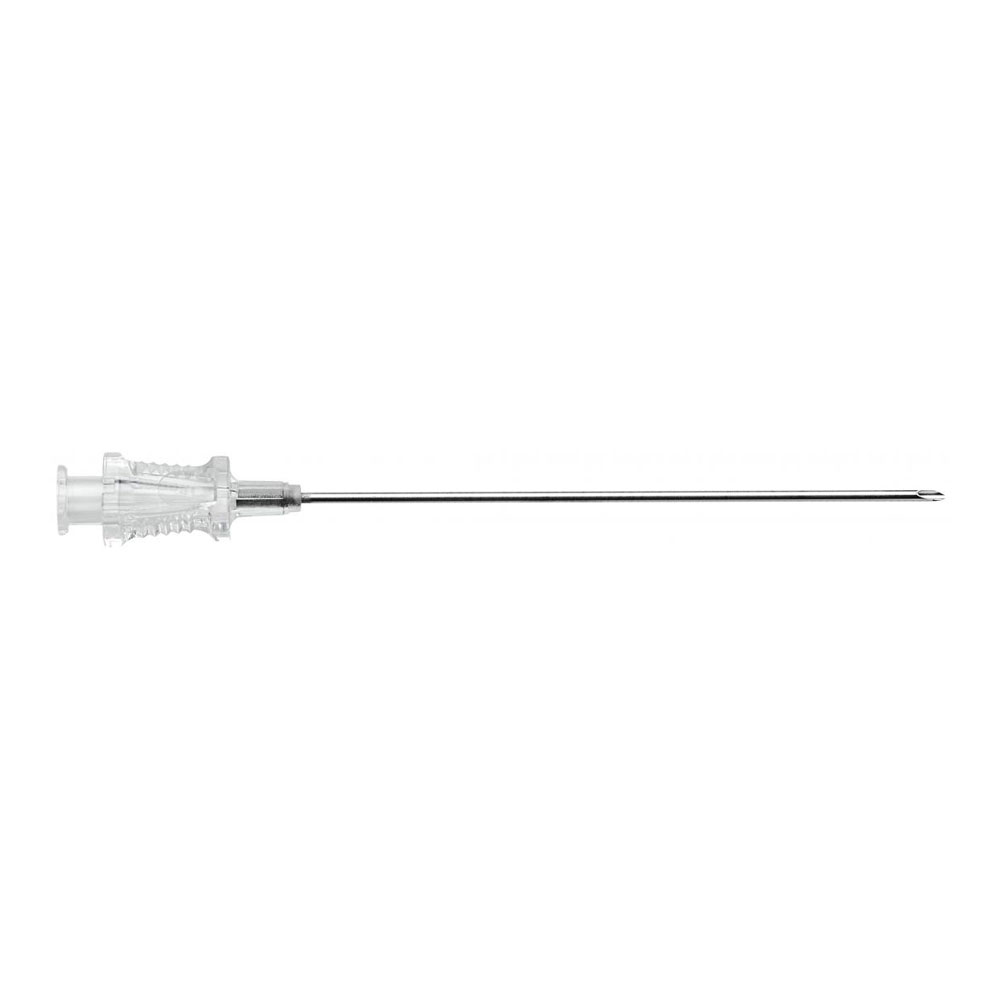

- Available with a clear window wall hub

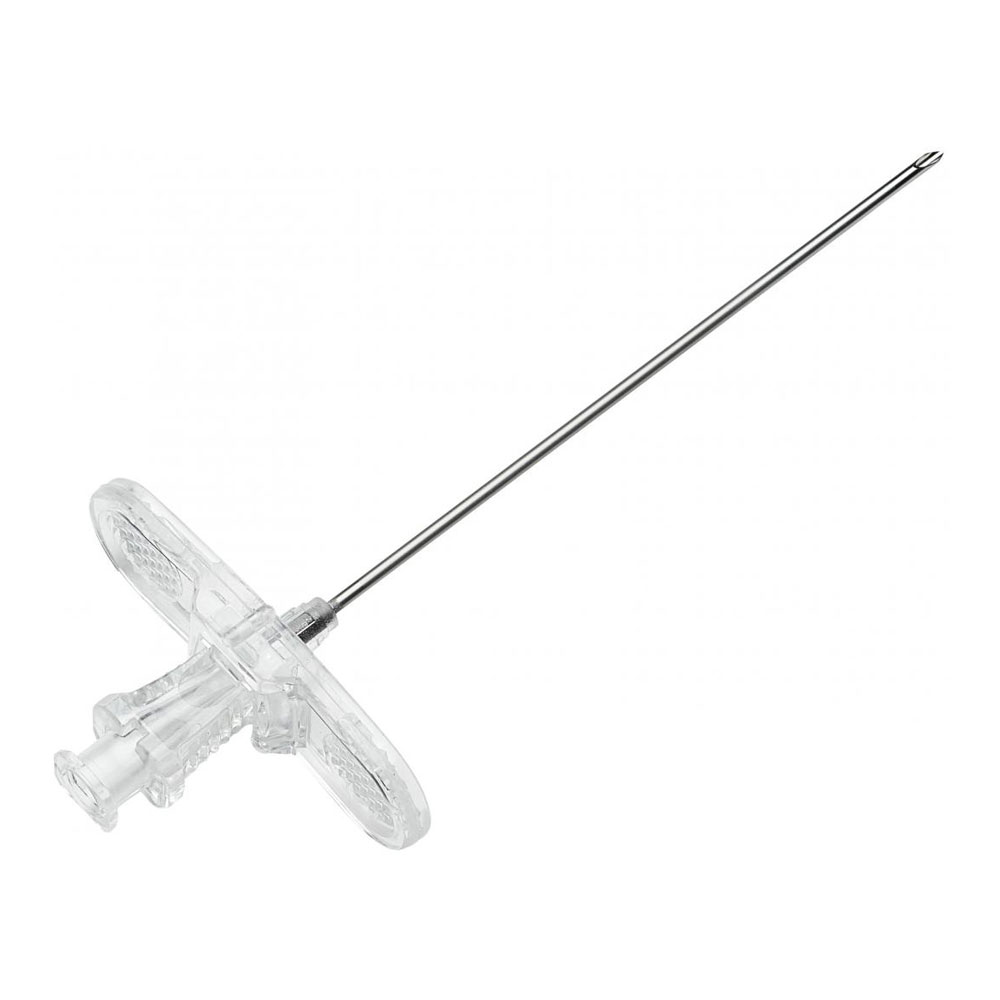

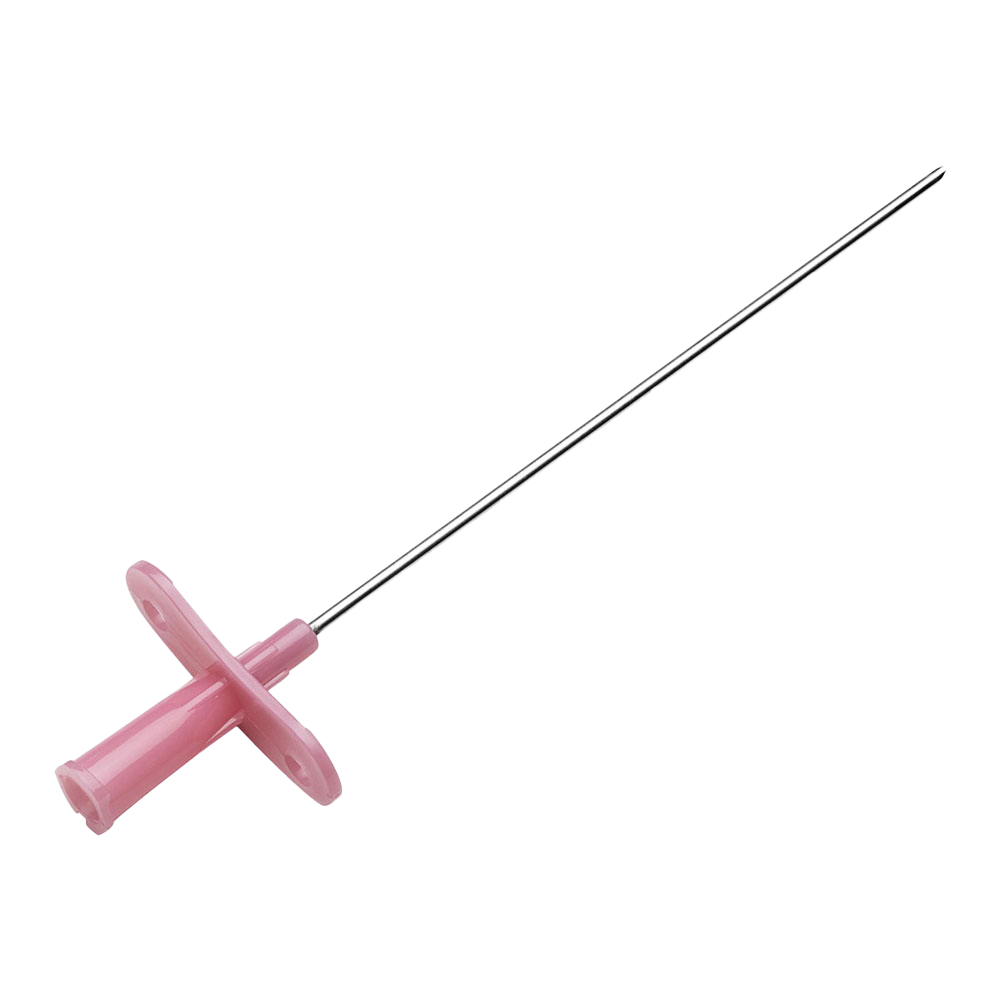

- Also available with a winged base plate
| Catalog Number | Product Type | Size | Length | Guidewire Diameter | Units per Box |
|---|---|---|---|---|---|
| 1100-18E-7 | 18 ETW | 7cm | 0.038″ | 250 | |
| 1100-18E-7CL | 18 ETW | 7cm | 0.038″ | 250 | |
| 1100-19SP-7CL | 19 SP | 7cm | 0.035″ | 250 | |
| 1100-20E-4CL | 20 ETW | 4cm | 0.025″ | 250 | |
| 1100-21-3.8CL | 21 TW | 3.8cm | 0.021″ | 250 | |
| 1100B-18E-7 | 18 ETW | 7cm | 0.038″ | 250 | |
| 1100B-18E-7CL | 18 ETW | 7cm | 0.038″ | 250 | |
| 1100B-19U-7CL | 19 SP | 7cm | 0.035″ | 250 | |
| 1100B-20E-7 | 20 ETW | 7cm | 0.025″ | 250 | |
| 1150-18E-7 | 18 ETW | 7cm | 0.038″ | 250 | |
| 1150-19SP-7 | 19 SP | 7cm | 0.035″ | 250 | |
| 1150-21-3.8 | 21 TW | 3.8cm | 0.021″ | 250 | |
| 1150-21-7 | 21 TW | 7cm | 0.021″ | 250 | |
| 1158-18E-7 | Removable Wing | 18G ETW | 7cm | 0.038″ | 250 |
| 1158-19SP-7 | Removable Wing | 19G SP | 7cm | 0.035″ | 250 |
Not all SKUs available in every region
